When it comes to misapplying — or, more commonly, overly simplifying — the Transect, we’re all guilty on some level. For instance, I often speak generally about its inherent rural-to-urban spectrum and how, as you move through it, the landscape changes its character. The highways and byways whisking you through the wilderness and countryside get increasingly slower as you approach the city center, becoming streets of very specific proportions. Buildings change too, sitting on their lots in much more formal fashion as you move to the core, with trees and sidewalks dutifully matching the rhythms of their formality.

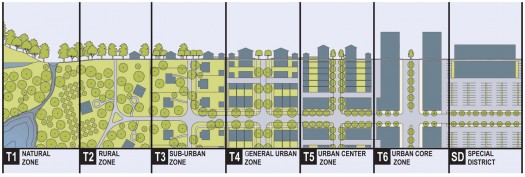

Image credit: Duany Plater-Zyberk & Company via CATS. Click for larger view.
This may lead you to believe that the Transect is like a fried egg, with the most urban T6 in the middle, slowly fanning out to the wilderness T1 along the edge. This sort of Jetson-like city is the Transect misapplied.
Image credit: Flickr user dherrera_96, modified. Click for larger view.
Unlike a rainbow where the colors of the spectrum remain faithfully at each other’s side, the Transect well applied appears as neighborhood nodes connecting across the land at a very fine grain. And when different urban intensities interact, like where Central Park’s civic (similar to T1) abuts Manhattan’s T4, T5, and T6, deeply satisfying environments emerge. A fried-egg T6 where you have to go a long way to a wilderness T1 doesn’t enhance well being and severely hampers free range kids.
Image credit: Sergey Semonov via The Atlantic. Click for larger view.
The Transect is fractal to some extent, having a regional scale, neighborhood scale, and even a lot scale from the front to the back of the house. You can arrange almost anything based on what you’d do or wear or see in T1 versus what’s appropriate for T6. No tuxedo at the square dance, please.
This fractal nature of the Transect is a nested series of coherent levels. So when the Transect Zones are correctly applied, they are done at the neighborhood scale, not at the regional scale.

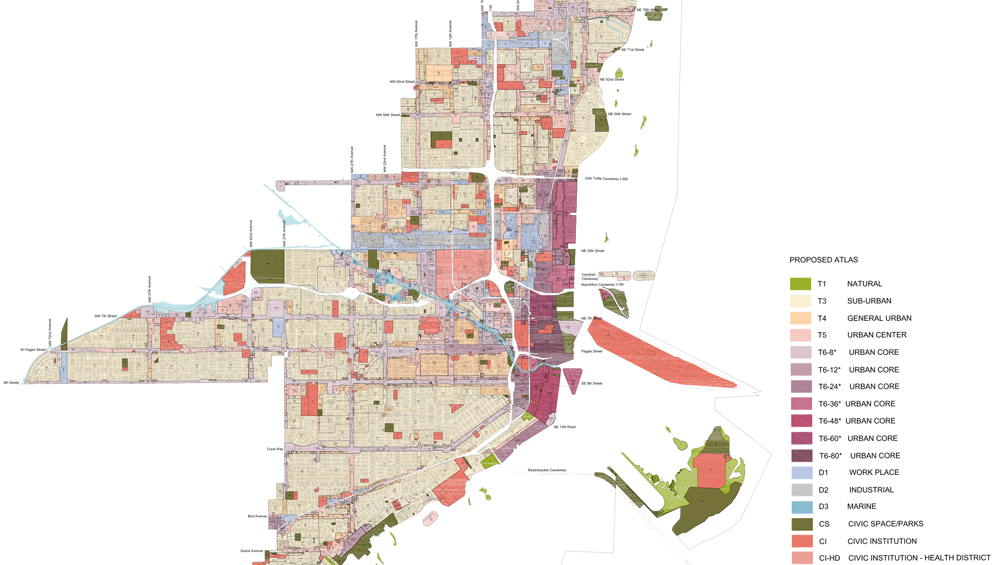

Image credit Miami 21 and Duany Plater-Zyberk & Co. Click for larger view.
Image credit: County of Hawaii and PlaceMakers. Click for larger view.
It’s true that our Transect illustrations often reinforce this idea of the regional Transect, although their primary objective is to illustrate the change in character in the different zones, and not to imply that they cover the region.
To thwart this easy-to-make mistake, the following graphic shows different SmartCode Community Unit types for New Communities — CLD (Clustered Land Development), TND (Traditional Neighborhood Development), and RCD (Regional Center Development) — and the Transect Zones of which they are comprised.

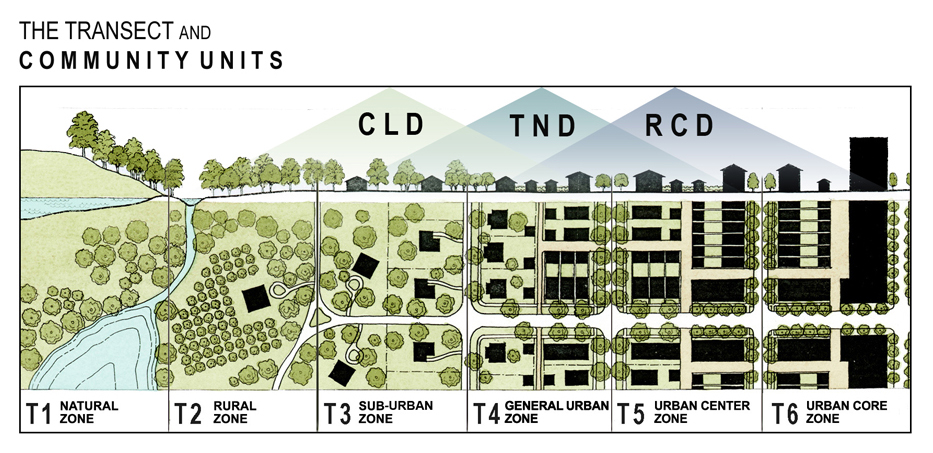

Image credit: Sandy Sorlien via CATS. Click for larger view.

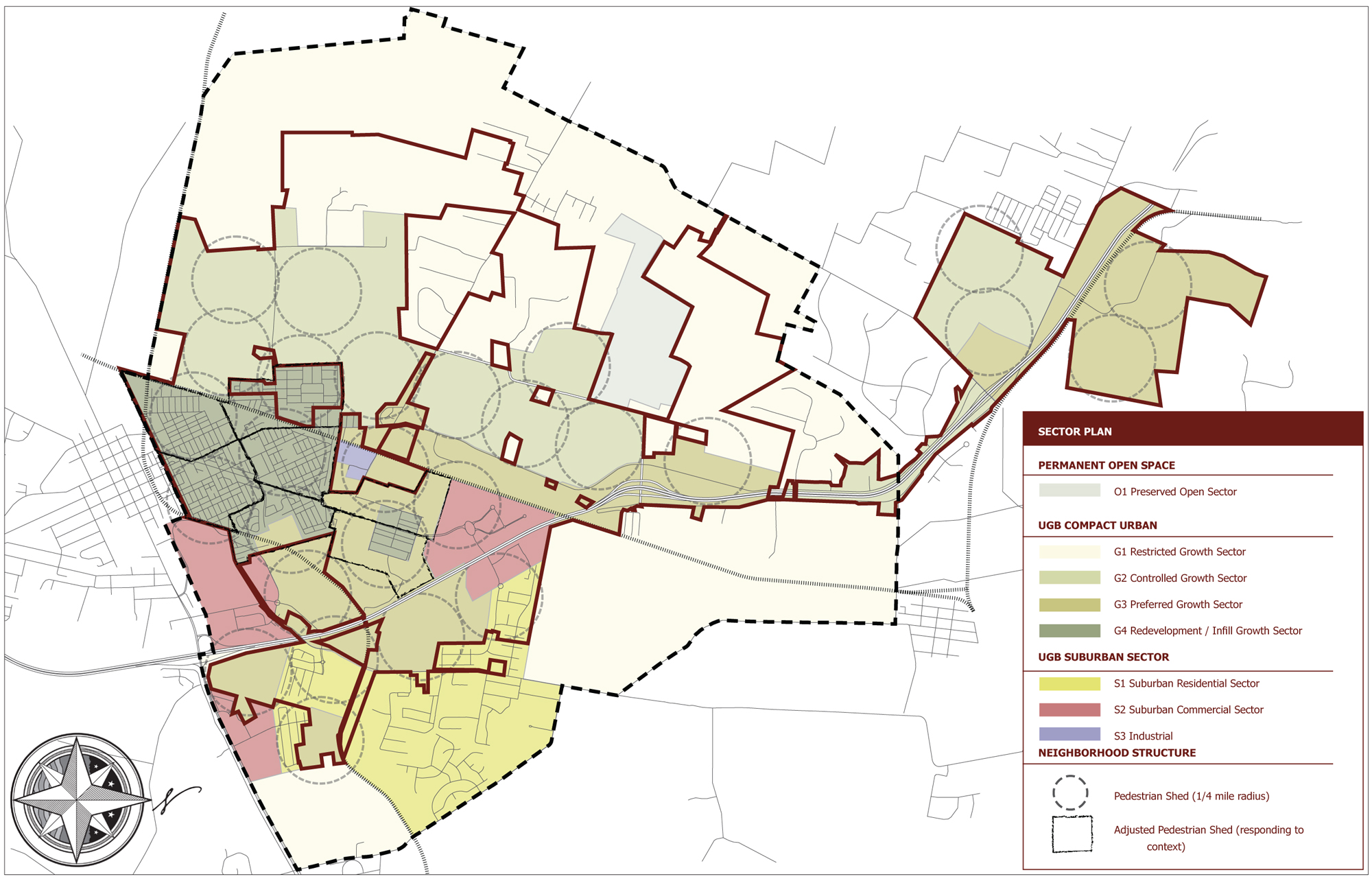

The Ranson Sector Plan below is the primary policy tool in the Urban Growth Boundary for guiding future growth. Instead of allowing pods of separate land uses, the Sector Plan enables for complete Communities — compact, pedestrian-oriented, mixed use neighborhoods as well as identifying areas to remain suburban for the near term. However, you’ll note that Transect Zones aren’t mapped to the region in the comprehensive plan, but rather to the neighborhood in the zoning code. Note that the Preferred Growth and Controlled Growth areas to the north end of the map have to do with the soon to be relocated Duffields Train Station that’s moving from the middle of a field to a more accessible location.
Image credit: City of Ranson and PlaceMakers. Click for larger view.
If you want to rewind and learn more about Transect theory and the environmental roots of the idea, visit the Center for Applied Transect Studies website and Facebook page. If you want to delve further into the subject, check out this 3-hour conversation from CNU 20, The Misunderstood Transect, particularly starting at 54:51 with Sandy Sorlien, Andrés Duany, Emily Talen, and others.
With 2013 being the 50th anniversary of the Jetsons, I’d say we haven’t quite reached their elevated projections of a mechanized world. Instead, we’ve returned to a placemaking esthetic where we can cast a shadow. Walk a mile. And cycle our way back to fitness and reconnection. And hopefully by doing so, learn to conserve enough to be able to afford a machine or two for our grandchildren.
To help with that, read the whole FBC Ways to Fail Series.
If PlaceShakers is our soapbox, our Facebook page is where we step down, grab a drink and enjoy a little conversation. Looking for a heads-up on the latest community-building news and perspective from around the web? Click through and “Like” us and we’ll keep you in the loop.
Thanks for addressing this important issue, Hazel. It’s not necessarily an error to map neighborhoods as fried eggs, as more intensity in the center is a common traditional pattern and still makes sense in many places. A village that is only one ped shed could be just one fried egg, and Transect Zones could be applied productively there. But, as you say, if the scale of the “egg” is too large, and T-zones are applied at a corresponding large scale, they won’t work to provide balanced neighborhoods, and none of the Transect-based tools posted at CATS can be used without creating monocultures. A walkable city is made up of numerous hummingbird eggs (neighborhoods), not one enormous ostrich egg, and a hummingbird neighborhood contains T-zones, not the other way around. (And the T5 yolk may stretch into a bacon strip, er, mixed-use corridor.)
You’re right, confusion arises because people look at some of the T-zone diagrams and local Transect illustrations, and imagine whole cities or regions. But the SmartCode clearly calls for several T-zones per pedestrian shed, coding at least T3 through T5/T6 (the “Urban Transect”) at the fine grain. T1 Natural and T2 Rural could extend beyond the community, but large expanses may be better handled in a regional sector plan, as your Ranson map shows very well. (See Appendix II of the SmartCode Version 9 and Manual for a discussion of the T1 and T2 zones versus the O1 and O2 sectors.) The kind of rural-to-urban transect (small t) that occurs regionally is different from the model SmartCode Transect (big T) intended for zoning, with its six normative zones. Trying to apply the standards for the latter to the scale of the former will not end well.
We need to be careful how we say things because it causes confusion.
“The Transect is fractal to some extent, having a regional scale, neighborhood scale, and even a lot scale from the front to the back of the house.”
This sentence should be something more like “transects can be used to understand the fractal nature of regions, neighborhoods, and even the lot scale from the front to the back of the house.”
Notice transect, small “t”. The Transect, capital “T”, is not applied to regions or lots. A transect can be used to identify gradations of lots of things at various levels. The fact that there is a gradation of “things” at multiple levels is what’s fractal.
Also, the fact that The Transect doesn’t often represent a straight line gradation causes confusion in the use of the word transect itself in “The Transect”
I wasn’t really familiar with the idea of the transect aside from experiencing it as a commuter. It’s like the evolution of an organism moving from simple to complex structures. What’s neat is the idea that we can control the growth patterns
